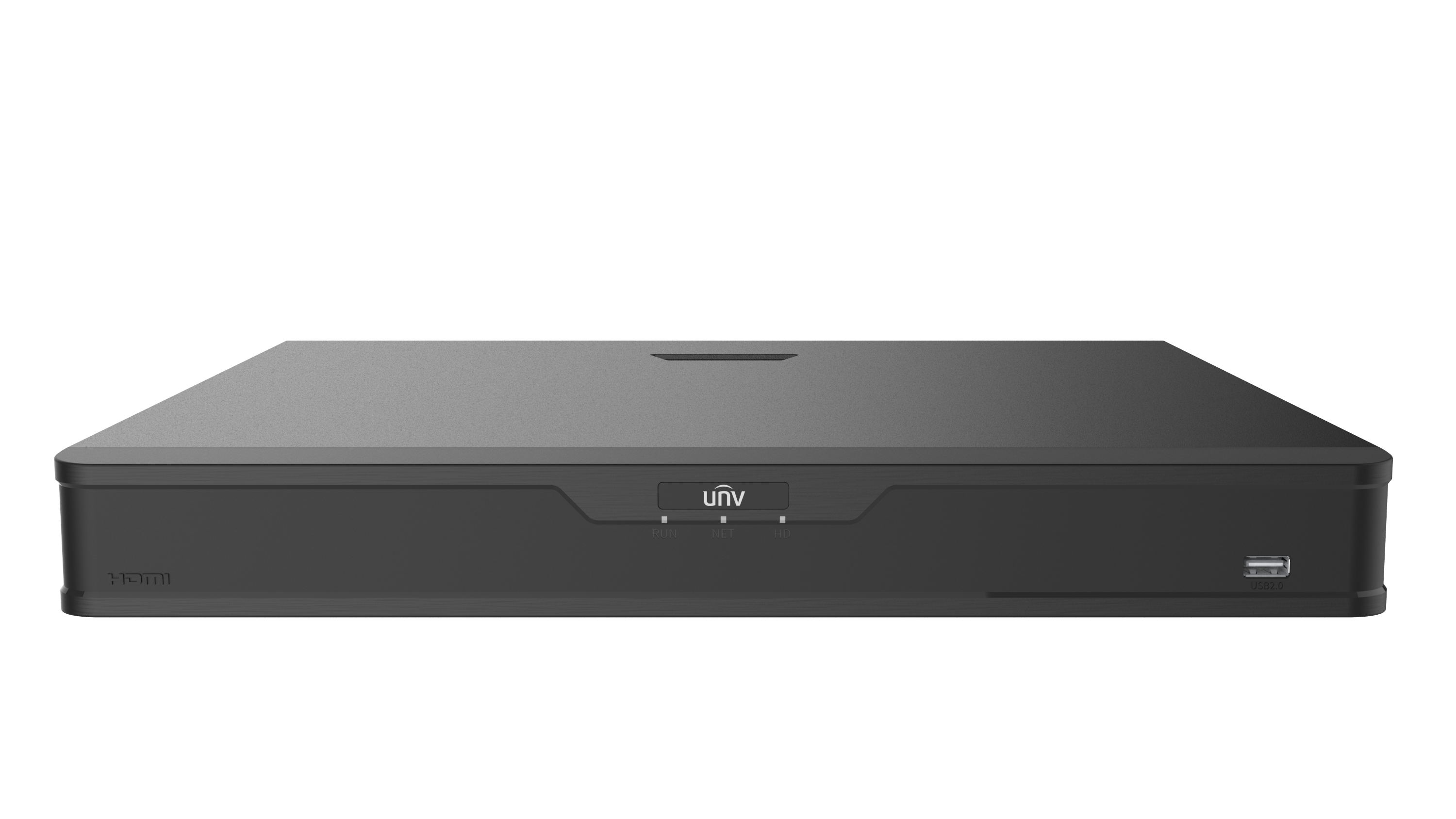

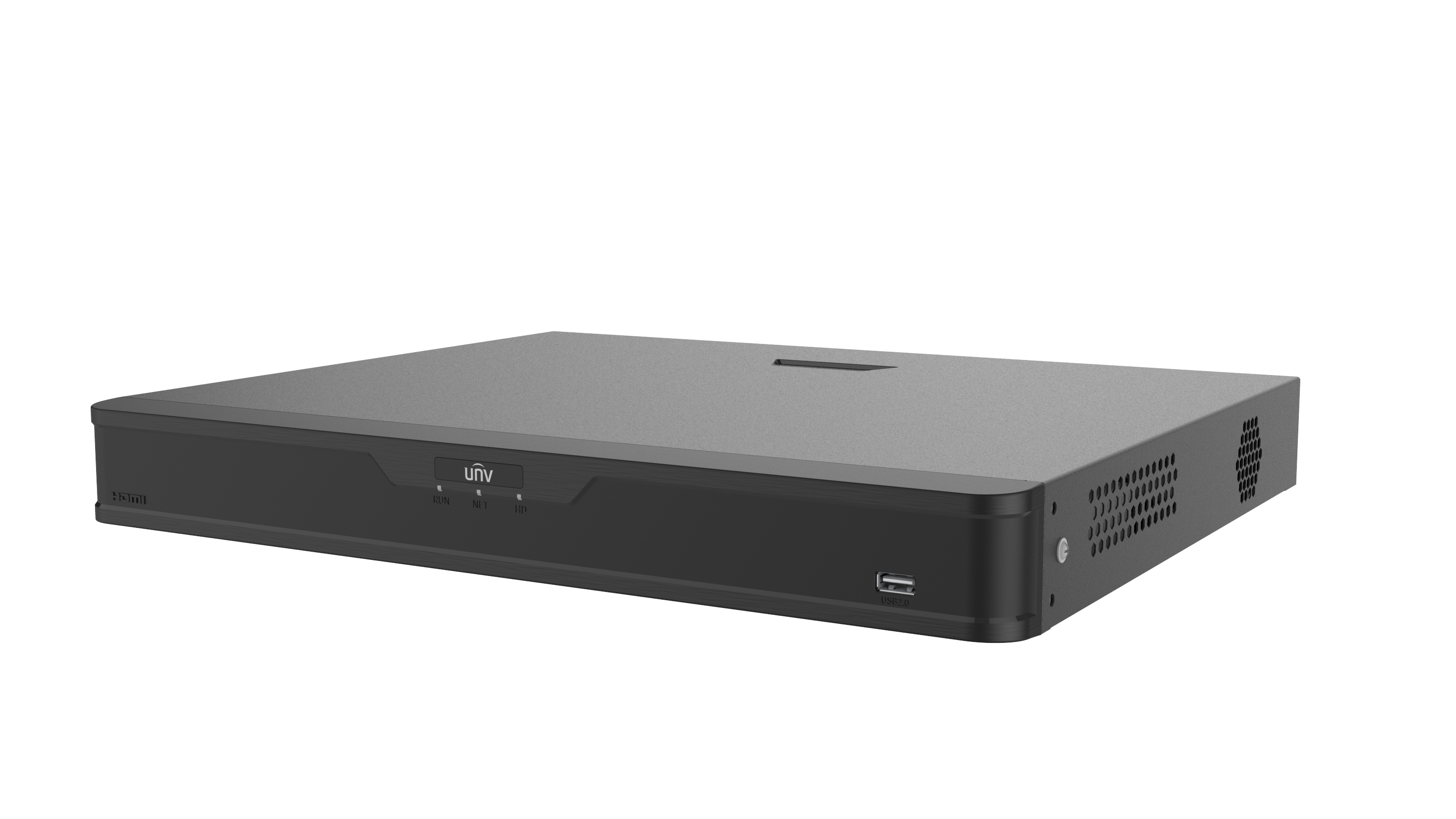

XVR302-16U3
2 HDDs 16-Ch Digital Video Recorder
Support H.265/H.264 video formats
Support audio over coaxial cable(TVI cameras)
Control the dual-light of UNV analog cameras under TVI
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
16-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols
channels
16-ch BNC Input
videoCompression
N/A
resolution
8MP/5MP/4MP/1080P/720P/D1
recordingBandwidth
N/A
storageCapacity
Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
networkInterface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
powerSupply
DC 12 V/5 A
dimensions
380mm × 326mm × 53mm (15.0 × 12.8×2.1)
