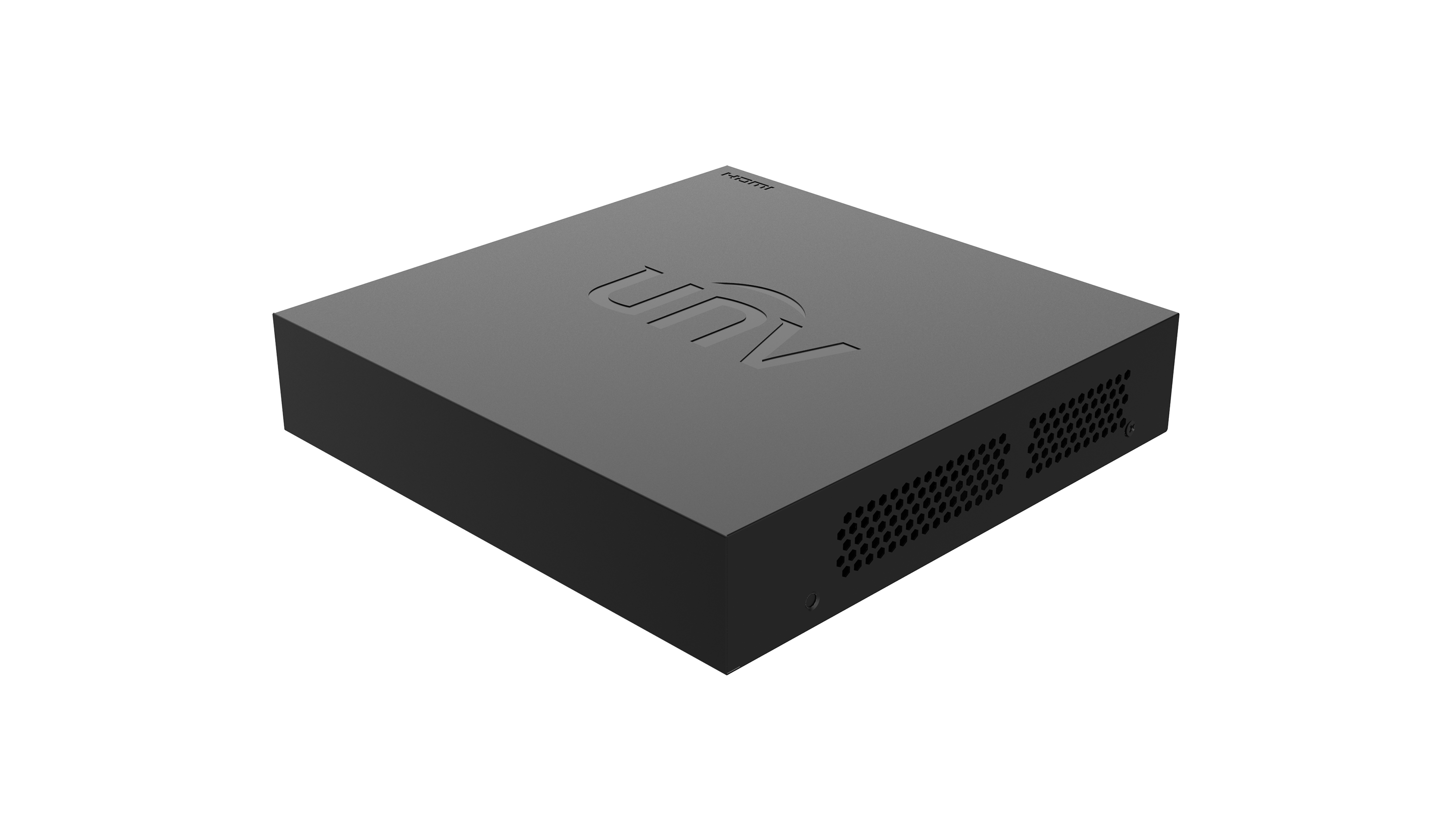

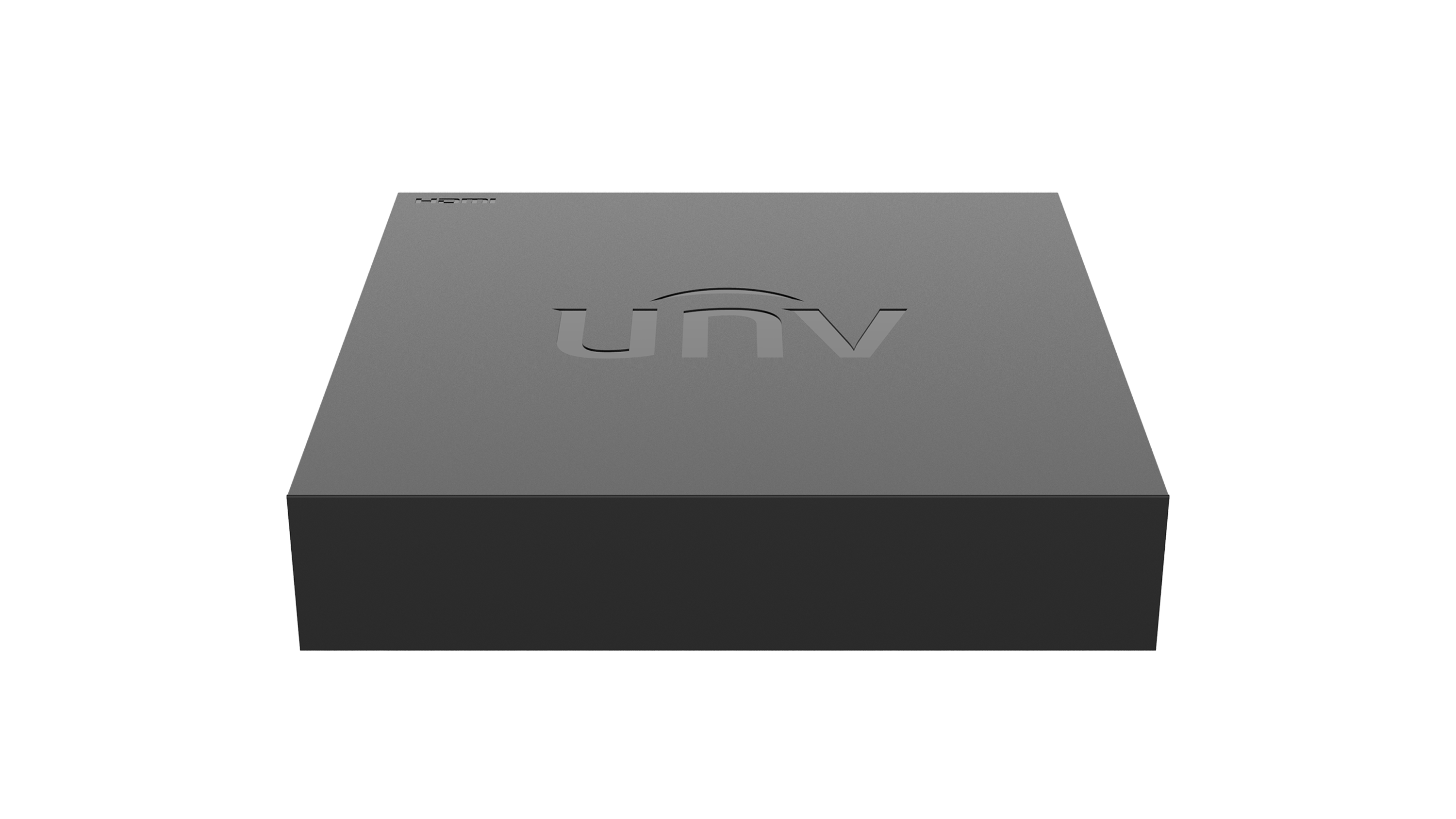

XVR301-F Series
1 HDD 4-Ch 1U Digital Video Recorder

Supports Ultra 265/H.265/H.264 video formats
Supports audio over coaxial cable (TVI cameras)
Control dual-light of UNV analog cameras under TVI
Supports TVI, AHD, CVI, CVBS, IP cameras with adaptive access
16-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols
channels
4/8/16-channel BNC input
videoCompression
N/A
resolution
1080P Lite/720P/D1
recordingBandwidth
N/A
storageCapacity
Up to 6 TB for each HDD"
networkInterface
1 RJ45 10 M/100 M self-adaptive Ethernet Interface
powerSupply
DC 12 V/1.5 A
dimensions
190mm × 202mm × 42mm (7.5 × 7.9 × 1.6)
