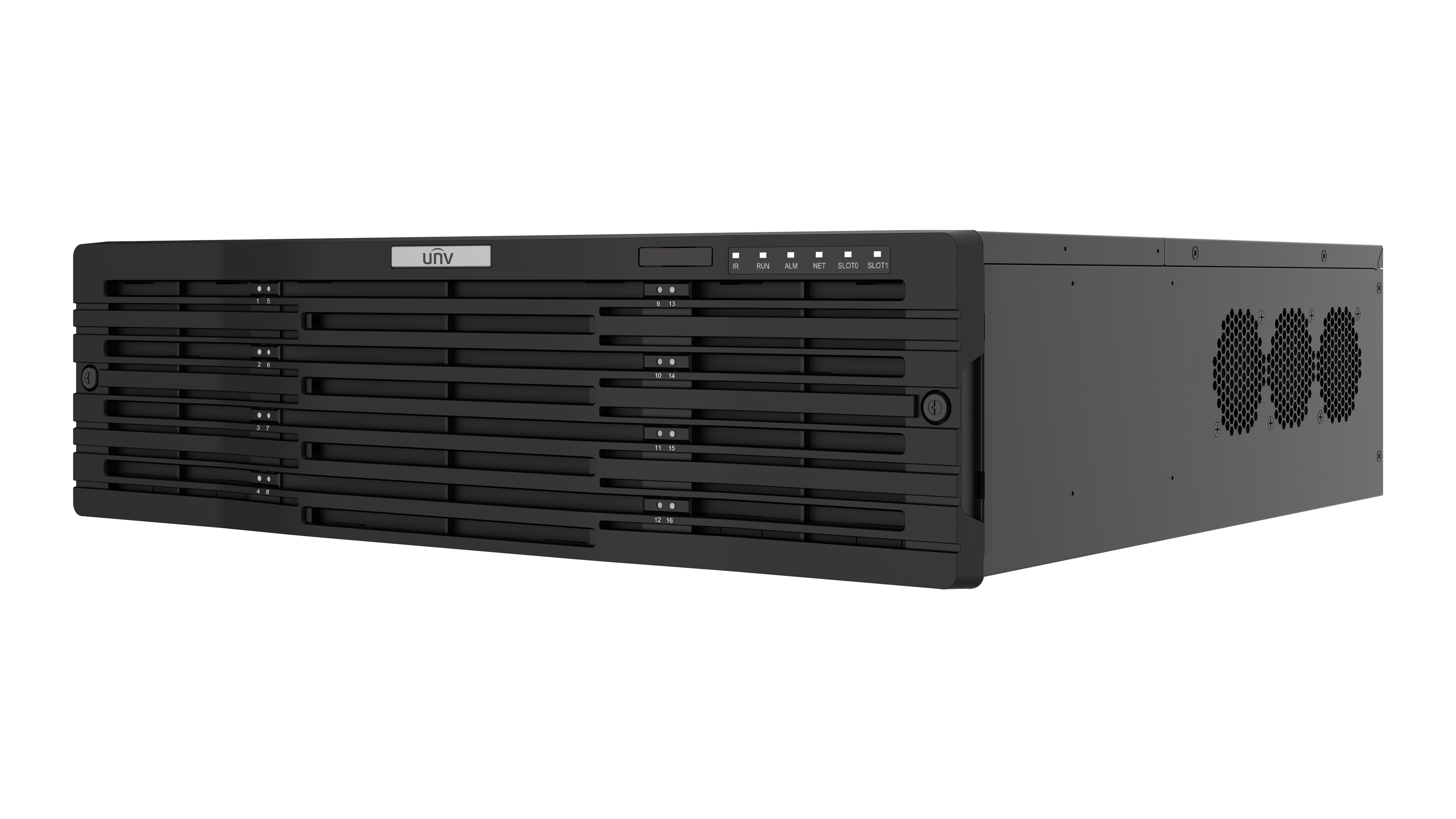

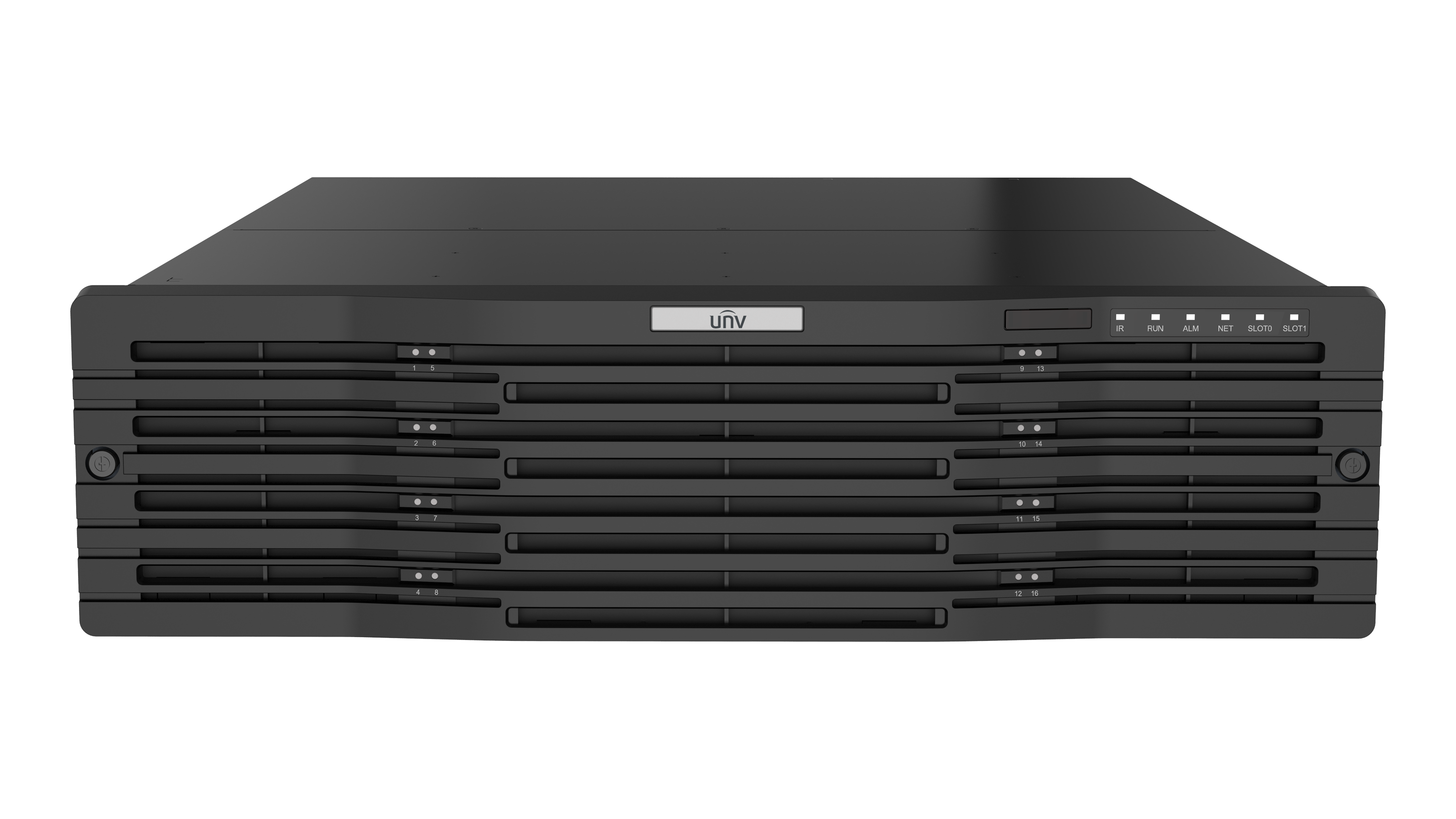

NVR516-64
Professional 64-channel network video recorder with support for up to 16 HDDs, RAID configurations, and 4K output resolution.

Support Ultra 265/H.265/H.264 video formats
64/128-channel input
Third-party IP cameras supported with ONVIF conformance
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI1, HDMI2 and VGA independent outputs
Up to 12 Megapixels resolution recording
Redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage
Support 2 miniSAS Interfaces
Support 12V power output
ANR technology for enhanced storage reliability
Support cloud upgrade
Support N+1 Hot spare
channels
64/128-channel input
storage
16 SATA interfaces, up to 16TB per HDD, RAID 0/1/5/6/10/50/60, Hot-swappable
bandwidth
384 Mbps incoming/outgoing
videoOutput
2-ch HDMI (up to 4K), 1-ch VGA, independent outputs
compression
Ultra 265/H.265/H.264
powerSupply
AC 100 to 240V, ≤50W (without HDD), Redundant power supply optional
dimensions
482mm × 477mm × 131mm (19.0" × 18.8" × 5.2")
networkInterface
RJ-45, TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x
