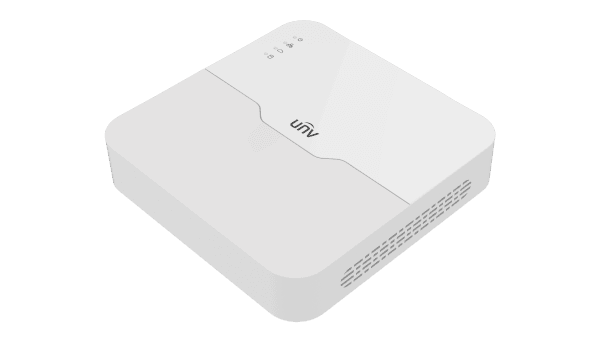

NVR301-B-LP-IQ Series
NVR301-B-LP-IQ Series
- Supports Ultra 265, H.265, and H.264 video formats
- Available in 4-channel, 8-channel, and 16-channel input configurations
- Plug & Play with independent PoE network interfaces
- Supports HDMI and VGA simultaneous video output
- Supports recording resolutions up to 12 Megapixels
- Supports ANR technology to enhance storage reliability when the network is disconnected
- Supports cloud upgrade
- Supports up to 16-channel concurrent playback
- Supports face detection, vehicle detection, SIP, UMD, and traffic monitoring through supported cameras
- Supports AcuSearch and AcuTrack functions
- Supports VCA search including human, vehicle, non-motor vehicle, face detection, people counting, and heat map search
- Supports multiple alarm and event detection functions
- Supports up to 24TB HDD capacity
- Supports ONVIF Profile S, Profile G, and Profile T integration
- Supports up to 32 IP speaker channels
- Supports 4/8/16 PoE camera connections depending on model
- NDAA compliant
Specifications
| NVR301-B-LP-IQ Series | |
|---|---|
| Model | |
| 4-Channel Model | NVR301-04B-LP4-IQ |
| 8-Channel Model | NVR301-08B-LP8-IQ |
| 16-Channel Model | NVR301-16B-LP8-IQ |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability - 4 Channel | Smart Off: 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30; Smart On: 2 × 4K@30, 4 × 4MP@30 |
| Decoding Capability - 8 Channel | Smart Off: 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30, 8 × 1080P@30; Smart On: 2 × 4K@30, 4 × 4MP@30, 8 × 1080P@30 |
| Decoding Capability - 16 Channel | Smart Off: 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30, 10 × 1080P@30, 16 × 720P@30; Smart On: 2 × 4K@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30 |
| Maximum Channel Resolution | 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Maximum Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP |
| Browser Support | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | |
| IP Video Input - 4 Channel | 4 channels |
| IP Video Input - 8 Channel | 8 channels |
| IP Video Input - 16 Channel | 16 channels |
| RCA Audio Input | 1 channel |
| Peripheral | |
| IP Speaker | 32 channels |
| POS | All channels |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| RCA Audio Output | 1 channel |
| Live View Display - 4 Channel | 1/4 |
| Live View Display - 8 Channel | 1/4/6/8/9 |
| Live View Display - 16 Channel | 1/4/6/8/9/16 |
| Corridor Mode Screen - 4 Channel | 3/4 |
| Corridor Mode Screen - 8 Channel | 3/4/5/7/9 |
| Corridor Mode Screen - 16 Channel | 3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1 channel via RCA using the audio input and output |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-channel snapshot, maximum D1 (720 × 576) video and snapshot resolution |
| Recording | |
| Recording Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF, CIF |
| Concurrent Playback | 16 channels |
| Smart Function | |
| Smart by IPC | All channels, up to 8 images/s in total; Face Detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring |
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| NVR Analyzer Mode | Single Mode, Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack); modes cannot be active simultaneously |
| VCA Search | AcuSearch, AcuTrack, Face Detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| AcuSearch | |
| AcuSearch Performance | All channels with UNV SIP/UMD cameras |
| AcuTrack | |
| AcuTrack Performance | All channels with UNV SIP/UMD cameras |
| Face Detection | |
| Face Detection by NVR - 4 Channel | Up to 4 channels with UNV Face Detection Camera; up to 1 channel with normal UNV/third-party 2MP camera |
| Face Detection by NVR - 8 Channel | Up to 8 channels with UNV Face Detection Camera; up to 1 channel with normal UNV/third-party 2MP camera |
| Face Detection by NVR - 16 Channel | Up to 8 channels with UNV Face Detection Camera; up to 1 channel with normal UNV/third-party 2MP camera |
| Search by Image | Support |
| SIP | |
| SIP with Normal Cameras | Up to 2 channels with normal UNV/third-party cameras; 2MP and 4MP limitations as specified |
| UMD | |
| UMD with Normal Cameras | Up to 4 channels with normal UNV/third-party 2MP cameras, 2 channels with 4MP, or 1 channel with 4K |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Language | |
| GUI Languages | 38 languages |
| Hard Disk | |
| SATA Interface | 1 SATA interface |
| Maximum Capacity | Up to 24 TB for each HDD; maximum capacity varies with environment temperature and hard disk size |
| HDD Temperature Limitation | Environment temperature should not exceed 35°C for specified maximum capacity use |
| External Interface | |
| Network Interface | 1 × RJ45 10/100M self-adaptive Ethernet interface |
| USB | Rear panel: 1 × USB 2.0, 1 × USB 3.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm Input | N/A |
| Alarm Output | N/A |
| Power | |
| Power Supply - 4 Channel | DC 48V / 1.35A |
| Power Supply - 8 Channel | DC 52V / 1.8A |
| Power Supply - 16 Channel | DC 52V / 1.8A |
| PoE | |
| PoE Ports - 4 Channel | 4 × RJ45 10/100M self-adaptive Ethernet interfaces |
| PoE Ports - 8 Channel | 8 × RJ45 10/100M self-adaptive Ethernet interfaces |
| PoE Ports - 16 Channel | 8 × RJ45 10/100M self-adaptive Ethernet interfaces |
| Maximum Power per Port | 30W |
| Total PoE Power - 4 Channel | 50W |
| Total PoE Power - 8 Channel | 75W |
| Total PoE Power - 16 Channel | 75W |
| Supported PoE Standards | IEEE 802.3at, IEEE 802.3af |
| Working Environment | |
| Working Temperature | -10°C to +55°C |
| Working Humidity | ≤90% RH, non-condensing |
| Power Consumption without HDD | ≤12W |
| Dimensions | |
| Height | 1U |
| Weight - 4 Channel | ≤2.7kg |
| Weight - 8 Channel | ≤4kg |
| Weight - 16 Channel | ≤4kg |
| Dimensions - 4 Channel | 205 × 212 × 46 mm |
| Dimensions - 8 Channel | 270 × 212 × 46 mm |
| Dimensions - 16 Channel | 270 × 212 × 46 mm |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part 15 Subpart B |
| Compliance | |
| NDAA Compliant | Support |
