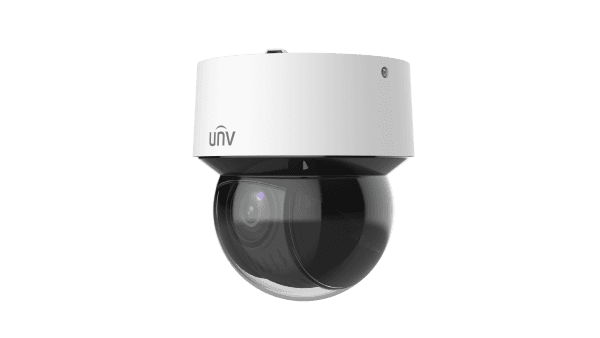

IPC6432LR-X16-VG1
IPC6432LR-X16-VG1
- 2MP resolution
- 1920 × 1080 at 60 fps main stream
- 16X optical zoom
- LightHunter technology
- Smart IR up to 100m
- Auto tracking with human and vehicle filtering
- Smart Intrusion Prevention
- False alarm filtering
- Cross line detection
- Intrusion detection
- Digital defog
- 2D/3D DNR
- Two-way audio
- Dual streams
- MicroSD storage up to 512GB
- 1024 presets
- Preset, route and recorded patrol
- 360° endless pan
- IP66 ingress protection
- IK10 vandal resistance
Specifications
| IPC6432LR-X16-VG1 | |
|---|---|
| Camera | |
| Max Resolution | 2 MP |
| Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.003 Lux (F1.78, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens | |
| Focal Length | 5.5 to 88 mm |
| Optical Zoom | 16X |
| Iris | F1.78–F3.73 |
| Field of View (H) | 52.46° to 3.67° |
| Field of View (V) | 30.98° to 2.07° |
| Field of View (D) | 64.53° to 4.33° |
| DORI | |
| Detect | 88.0 m to 1412.7 m |
| Observe | 35.2 m to 565.1 m |
| Recognize | 17.6 m to 282.5 m |
| Identify | 8.8 m to 141.3 m |
| Video | |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 1080P (1920 × 1080), max. 60 fps |
| Sub Stream | 720P (1280 × 720), max. 60 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Dual streams |
| OSD | Up to 4 OSDs |
| Intelligent | |
| Auto Tracking | Support, target filtering: human and vehicle |
| Smart Intrusion Prevention | Cross line detection, intrusion detection; false alarm filtering and classification of human and vehicle |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Illuminator | |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| IR Illumination Distance | Up to 100 m |
| Network | |
| Protocols | IPv4, IPv6, IGMP, RTP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF Profile S, Profile G, Profile T, Profile M, SDK, API |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| PTZ | |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Tilt Range | -5° to 90° (auto flip) |
| Pan Speed | 0.1°/s to 240°/s |
| Tilt Speed | 0.1°/s to 120°/s |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50130-4:2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU; (EU)2015/863) |
| Protection | IP66; IK10 |
| General | |
| Power | DC 12 V (±10%, 3A), PoE+ (IEEE 802.3at) |
| Power Consumption | Max. 23 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø167 mm × 181 mm |
| Weight | 2.3 kg |
| Working Environment | -40℃ to 65℃, humidity ≤95% RH (non-condensing) |
| Storage Environment | -40℃ to 70℃, humidity ≤95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Configurable P/N | Support |
